How to Handle Cylinder Exchanges

Cylinder exchange involves keeping track of the inventory of cylinders at your customer locations (by tracking pick-ups and deliveries). It also includes invoicing your deliveries and charging monthly tank rent on the cylinders left at each of your customer sites.

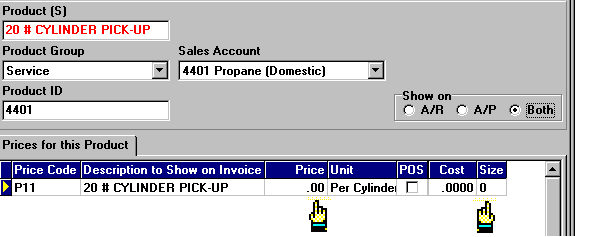

1. Set up a "Service" product for each cylinder size to be used as the "pick up" product. This is done for two reasons. First, it will facilitate keeping track of the running inventory of each cylinder size for each customer. Second, it will make entering delivery invoices easier.

For example:

Make sure the "Price" and "Size" for each Price Code are both set to zero. This will insure that the sales and quantity fields are properly calculated.

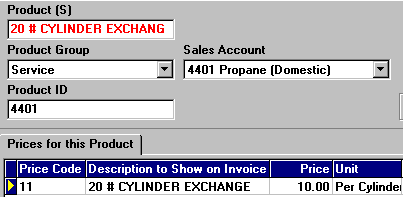

2. For each product set up in step 1 above, set up a corresponding product for each cylinder size to be exchanged. Set these up as a "Service" product and add the appropriate prices for each.

For example:


3. For each product set up in step 2 above, add the corresponding "pick up" product set up in Step 1 above as an Assembly Product.

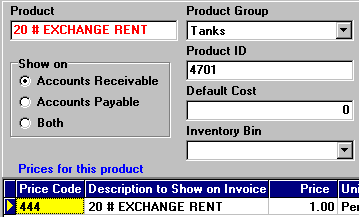

4. Set up a rental product for each cylinder size and add the appropriate prices for each.

For example:



1. Create a company owned tank record for each size cylinder you will exchange at the customers location. Select "Cylinder" as the Tank Type and select either gallons or pounds. Include the customer name and any other pertinent information about this account in the Equipment Description box at the bottom of the window.

2. Attach each of these cylinder records to the account.

3. Assign the default product to each cylinder. This is the appropriate size Service product you set up earlier (in this example, the 20# CYLINDER EXCHANGE shown above).

4. Assign the appropriate rental product to each cylinder.

Note: Be sure you select "Cylinder Exchange" in the Bill Rent By box.


For new customers, you're done. For a customer who has cylinders already, do the following additional step...

5. Enter the number of cylinders at each customer site. Go to the customer record and then for each cylinder size, left-click the tab. Enter the current inventory in this text box



1. After deliveries (and pick-ups) are made they are entered into the system in delivery batches. Deliveries are entered as plus quantities (that is, unsigned numbers) and pick-ups are entered as negative quantities and zero dollars. This is what keeps the running inventory current.

2. If you use a copy of the delivery ticket as your invoice, you won't need to print invoices. If you do NOT leave an invoice with the delivery, print invoices now by left-clicking the button and selecting Print all Invoices in this batch from the drop down menu.



1. Use the Period-end Billing procedure to generate the bills.

2. After you have generated the rental charges, find the Rental Charge batch that was just created.

3. Check it to make sure its correct and then left-click the button.

4. Left-click Print Batch Report to print a hard copy record of this billing cycle.

5. Left-click Print all Invoices in this batch to print the rental invoices.



1. Go to the customers account and left-click the Tanks Tab tab.

2. If there are multiple cylinder types on this account, find the type you want to see by left-clicking the and buttons.

3. To see how many tanks this account has check the "Tank Count" field towards the bottom of the window. This will display the current running inventory of tanks for this account, like this
